Electromagnetic (EM) Pumps for Foundry Castings

Electromagnetic (EM) pumps from CMI Novacast safely and precisely move liquid aluminum, sodium and other metals. The PG 300 and PG 450 models reduce scrap and boost production with safe and environmentally sound casting automation.

Case Study: EM Pumps Improve Employee Retention, Safety & Productivity by 180%

CMI Novacast Electromagnetic (EM) Pump Models

PG 300 Pump

PG 450 Pump

EM Pump Applications for Aluminum & Zinc Casting Automation

CMI Novacast PG Series Electromagnetic Pump Applications for Aluminum & Zinc Casting Automation

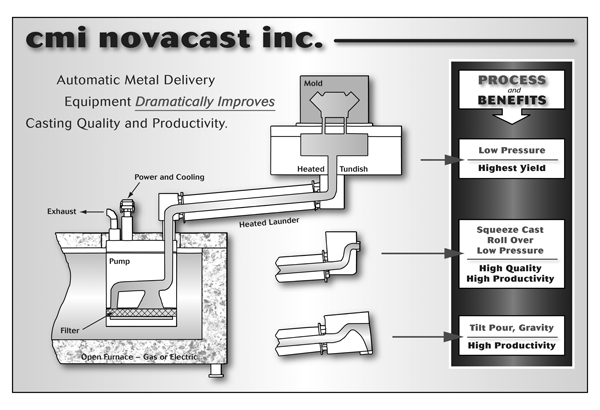

The launder/tundish system for the PG series pumps can be specifically engineered for gravity or low-pressure feeding into permanent mold, green or chemically-bonded sand, evaporative pattern, investment or plaster molds. Additionally, the PG series can pump precise quantities of molten metal into shot sleeves of squeeze cast or high pressure dies. There are several methods that can be utilized to fill molds.

Low Pressure Bottom Fill

Low Pressure Bottom Fill Figure 1 Green or chemically-bondeds and molds

Low Pressure Bottom Fill Figure 2 High pressure die casting shot sleeves

Low Pressure Bottom Fill Figure 3 Squeeze casting shot sleeves

Low Pressure Side Fill

Low Pressure Side Fill Figure 1 Green or chemically-bonded sand molds

Low Pressure Side Fill Figure 2 High pressure die casting shot sleeves

Low Pressure Side Fill Figure 3 Green or chemically-bonded sand rollover molds

Gravity Pour

Gravity Pour Figure 1 Green or chemically-bonded sand molds

Gravity Pour Figure 2 High pressure die casting shot sleeves

Gravity Pour Figure 3 Permanent mold machines pouring cup
