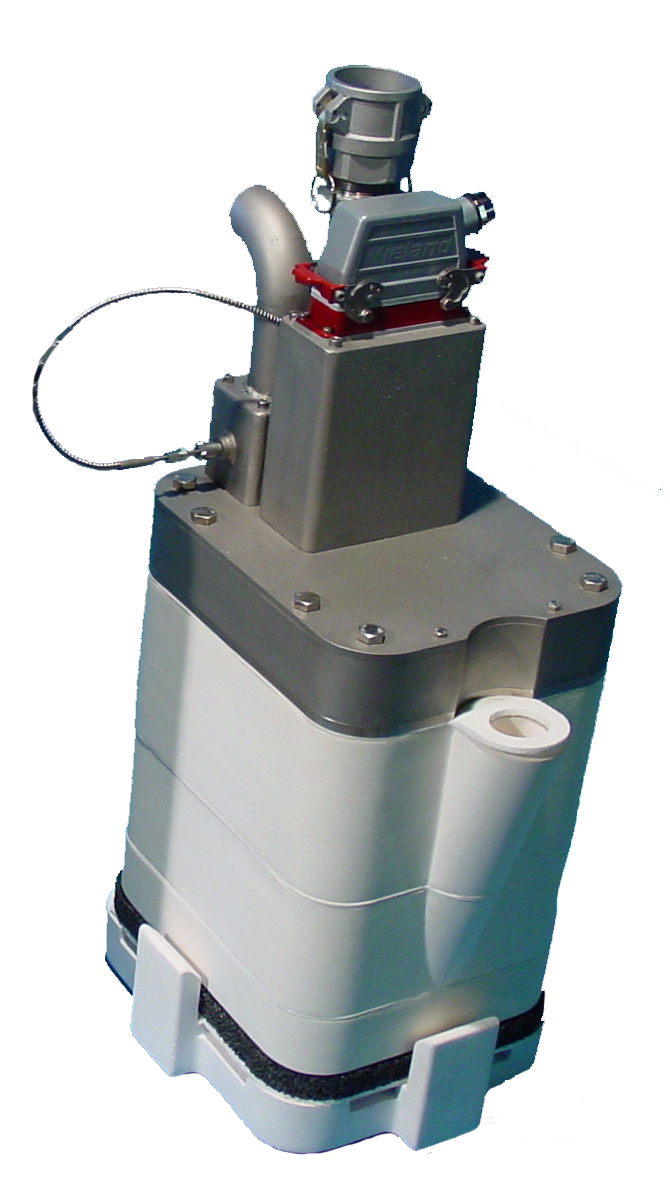

The compact PG 300 electromagnetic (EM) pump is designed for gravity filling of molds or to fit a smaller furnace-crucible – primarily for aluminum but also for silicon carbide composites and zinc. The typical molding rate is up to 120 per hour with poured weights averaging 22-90 lbs. (10-41 kg) per mold or approximately 4,700 lbs. per hour (2,100 kg per hour).
CMI Novacast engineers can integrate EM pumps to fit your casting automation needs, starting with a feasibility study that will quantify the potential impact, ROI and payback period of using CMI Novacast EM pumps at your foundry.
General Specifications for Aluminum
- Head Pressure – Sustained: 40 in. (1.0 m)
- Head Pressure – Peak: 48 in. (1.2 m)
- Maximum Flow Rate: 8.5 lbs./sec. (3.9 kg./sec.)
- Minimum Well Size: 19 x 16 x 20 in. deep (0.48 x 0.4 x 0.5 m deep)
- Power Requirements: 0-9 kW, 380/480 Volts, 50/60 Hz
- Furnace Type: Gas or Electric
- Cooling Air: System supplied by CMI Novacast
- Ideal for medium capacity casting: >10,000 lbs. per day or >2m lbs. per year for crucible furnaces with at least a 1,500 lb. capacity and all stack melters
